Gear or Peristaltic Bottle Filling Machine

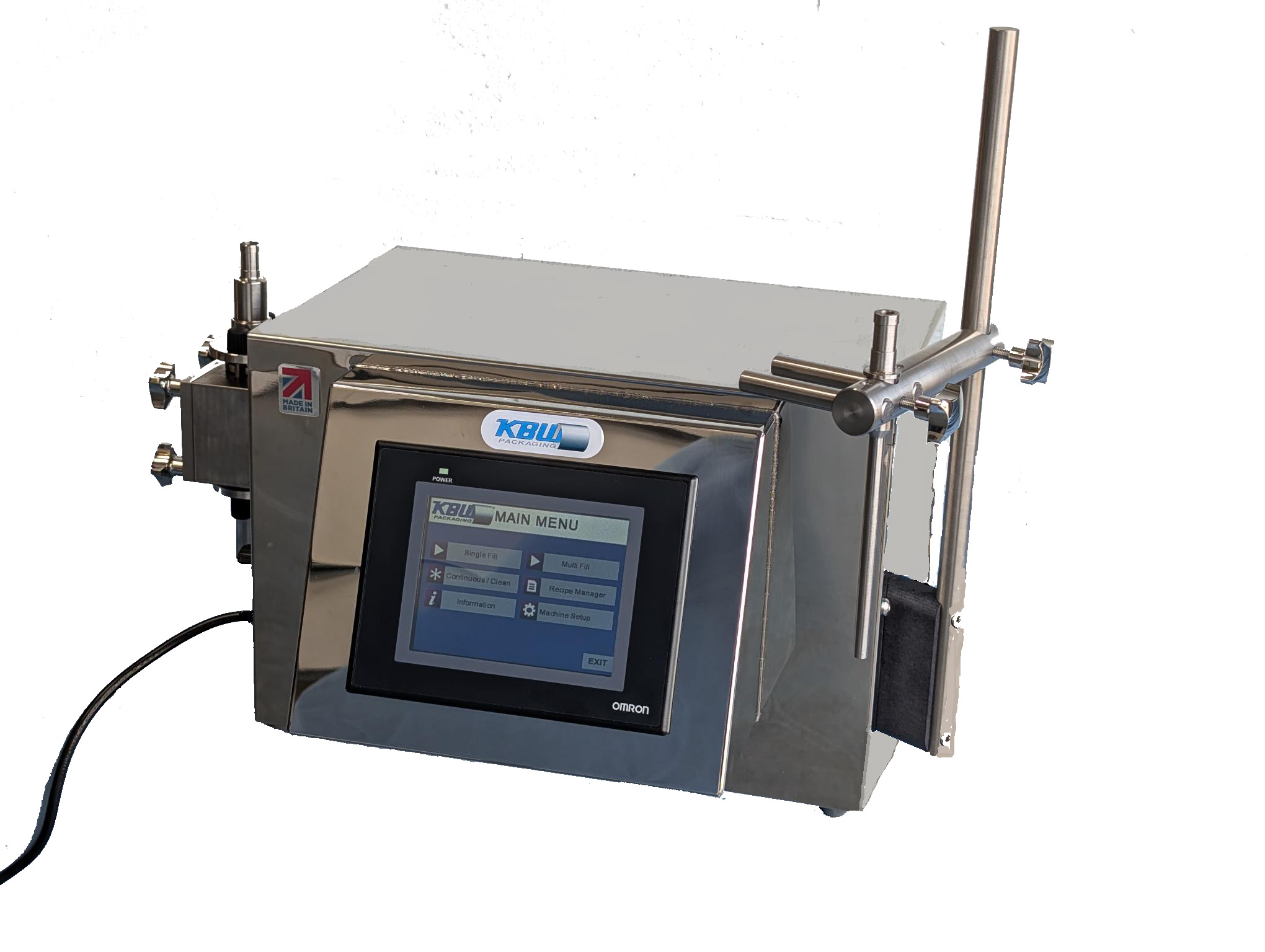

Introducing the AF0015 Bottle Filling Machine, a small and portable semi-automatic liquid filling machine that employs advanced gear or peristaltic filling technology.
This cost-effective, small volumetric filler is perfect for handling liquids, creams, and essential oils.
Featuring a single nozzle and a choice of gear pumps, including 1.5L, 6L, or 10L options, this versatile machine can also be equipped with a peristaltic pump. It operates in continuous fill, single fill, or timed fill modes, and boasts stage filling capability, ensuring accuracy and ease of use.
Premium Features of the AF 0015
Primarily utilised in the cosmetic, household, and pharmaceutical markets, the AF 0015 peristaltic bottle filling machine is ideal for small to medium-scale production runs requiring high accuracy for fill volumes. It has also been effectively used for various other applications, so please ask about your specific needs.

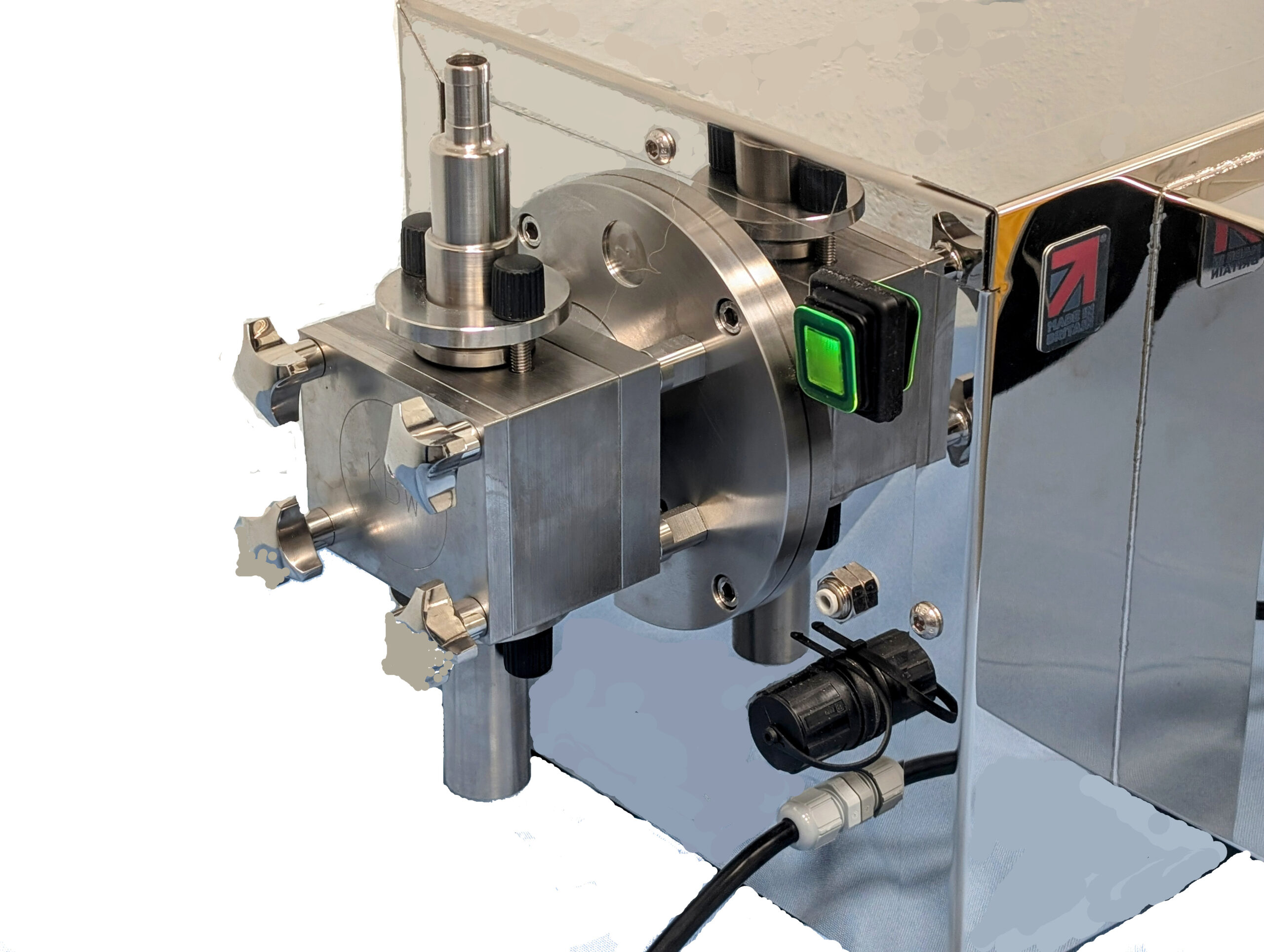

The product is drawn up a hose by a gear pump or peristaltic pump, making this a multifunctional bottle filling machine. You can set the fill amount using the touch screen display, making it suitable for products ranging from shampoo to e-liquid and creams. Filling Machine Operation Details

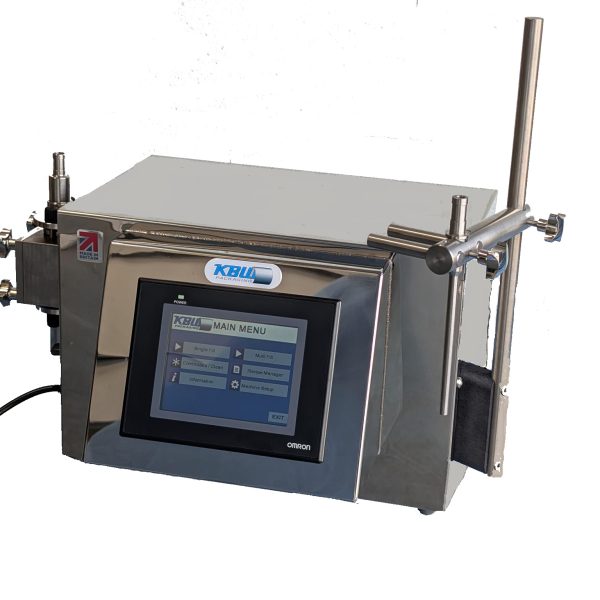

The AF 0015 peristaltic or Gear Pump liquid filling machine features a 5.6″ HMI colour touchscreen with recipe management, allowing storage of up to 20 recipes. The operator can adjust the liquid product dose and flow rate (pump speed) during operation.
The machine offers single dose and multi-dose filling options, along with clean-in-place functionality for continuous use.
The machine fills to a predetermined count value, and upon reaching the correct value, the pump head control stops, completing the filling cycle ensuring high accuracy every time.
The operator manually changes the containers and initiates the next filling cycle using an optional foot switch or by pressing the dose button in single fill mode or a pre-set time delay in multi-fill mode.
Machine Specifications and Options
- Fill Volumes: From 5 ml to 5 litres with filling accuracy and repeatability greater than +/- 0.5%. Note that with the peristaltic bottle filling machine option, fill volumes can be smaller than 5 ml.
- Touchscreen Control: 5.6″ HMI colour touchscreen with recipe management.
- Adjustable Settings: Customers can adjust fill volume and product flow during operation.
- Filling Modes: Single dose, multi-dose, and two-speed pump control for shaped containers.
- Hygienic Design: Clean-in-place functionality and tool-free removable product contact parts.
- Pump Options: 1.5L, 6L, 10L, and 20L gear pumps, with a peristaltic pump option available.
- Nozzle Range: Complete nozzle range to suit all filling media, pre-configured for positive shut-off pneumatic nozzles.
- Recipe Storage: Store up to 20 recipes for easy retrieval and quick changeovers.
- Construction: Built in compliance with FDA-approved materials, featuring a small machine footprint.
Versatile For All Filling Machine Applications.
The AF 0015 Bottle Filling Machine is perfect for a wide range of applications, including:
- Hand Sanitizer Filling
- Shampoo Filling
- Conditioner Bottle Filling
- Oil Filling
Additional Offerings from KBW Packaging
KBW Packaging offers a variety of gear pumps, with capacities of 1.5, 6, 10, and 20 litres per minute, designed specifically for our gear pump bottle filling machines. We also provide peristaltic pumps that can be easily integrated into the AF 0015 model, for a twin head bottle filling machine version please see the AF 0020.
Comprehensive Packaging Solutions
In addition to our bottle filling machines
we offer a wide range of packaging equipment, including:
We also provide complete line solutions with Monoblock machines through our trusted partners.
Expert Assistance
If you are unsure which filling machine best suits your needs, our knowledgeable team is ready to assist you. We are dedicated to helping you find the perfect filling machine tailored to your specific requirements.
Contact Us Today
Contact us today to learn more about our AF 0015 semi-automatic liquid bottle filling machine and how it can enhance your production process.
This is just one of our bottle filling machines perhapes you need one of our other Automatic
Bottle filling machines such as our AF0040
